Fantastic Testing Facilities
Test Your Systems
When you need to test a heating and cooling system, depend on Creative Thermal Solutions Inc. Learn more about our facilities today. Call us at 217-344-7663 to set up a test of your mobile or stationary unit. Replace with :
- Commercial heating systems
- Residential heating systems
- industrial heating systems
- automotive cooling systems
Set Your Test Conditions
- shared glycol loop circulating throughout the building
- glycol loop directed to individual chambers or test facilities providing 350kW (100 tons) of cooling capacity
- chambers designed with identical distance between installed test components as found in the actual system to replicate the internal volume and volume distribution of real application
- chambers situated to provide optical access to integral components for different visualization techniques
- infrared thermography and high-speed videography within chambers

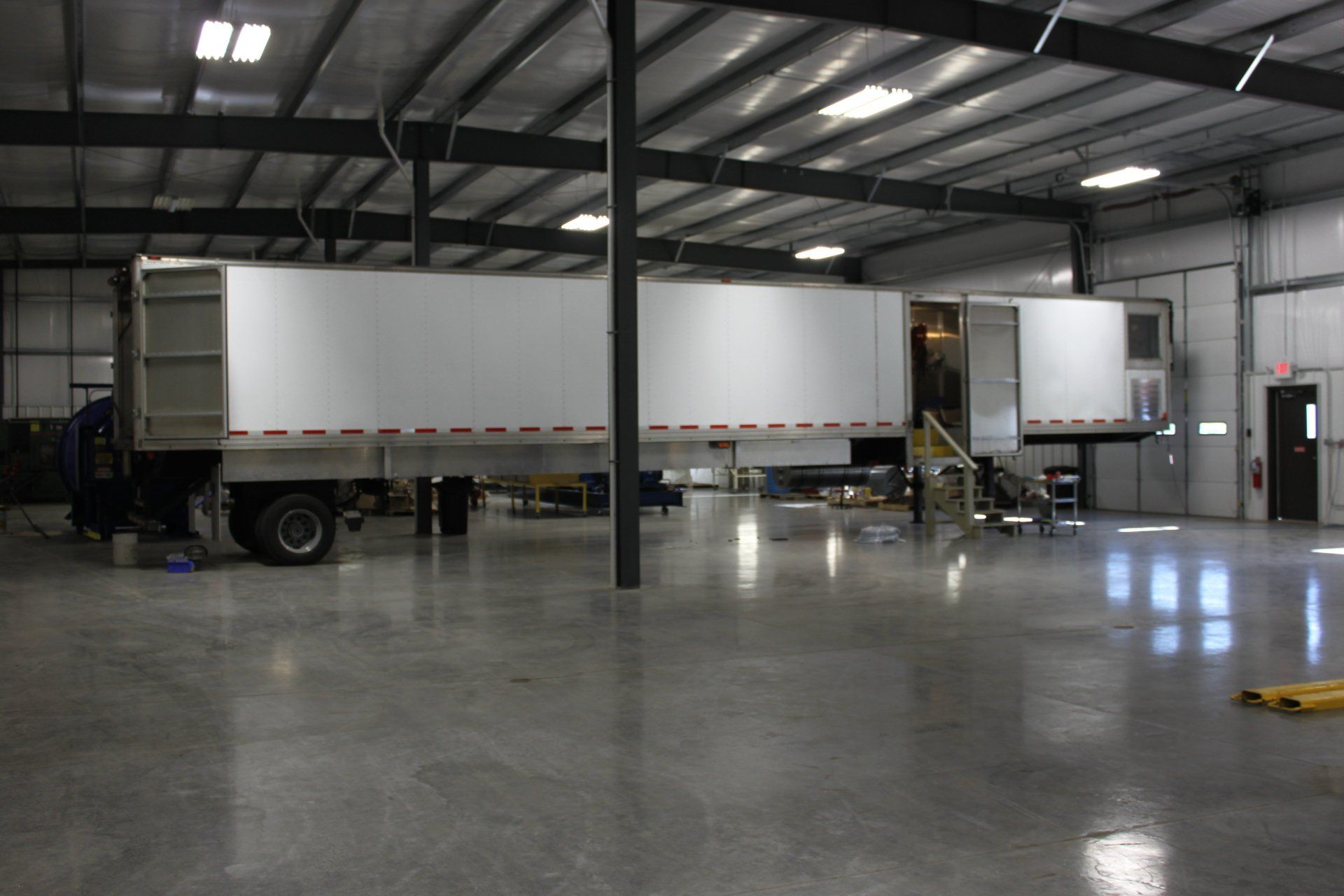

- largest chambers capable of accommodating full-size passenger cars and SUVs for mobile A/C unit studies
Using Cutting-Edge Data Logging
- wind tunnels for uniform, metered flow across heat exchangers
- built according to ASHRAE Standard 412-1987 to meet flow rate requirements and temperature measurements
- range of capabilities from 0.005 m3/s (10 scfm) to 25 m3/s (50,000 scfm) across the various chambers
- high-quality data loggers and state-of-the-art data logging software

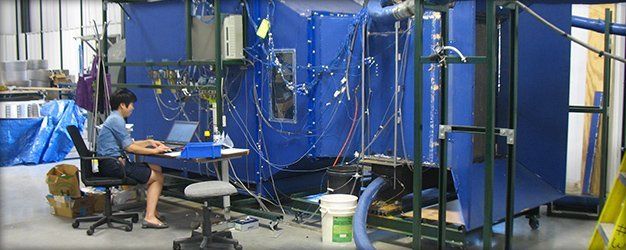

Wind tunnels are used within the chambers to provide uniform, metered flow across heat exchangers. The wind tunnels are built according to ASHRAE Standard 41.2-1987, which specifies requirements flow rate and temperature measurements. The individual capabilities of the wind tunnels are as high as 25 m3/s (50,000 scfm) and as low as 0.005 m3/s (10 scfm) across the various chambers. Data collection is performed by high-quality data loggers and state-of-the-art data logging software.
